FIAlyzer-FLEX Series
The FIAlyzer-FLEX flow injection analyzer is a reliable and efficient solution for laboratories looking to measure a wide range of parameters in drinking water, wastewater, and other liquid samples. Flow injection analysis offer a simple, reliable, and fast way of analyzing samples in the lab.
Some of the more common analytes include ortho-phosphates (OP), total phosphorus (TP), nitrate (NO3), nitrate + nitrite (NOx), nitrite (NO2), total nitrogen (TN), total Kjeldahl nitrogen (TKN), and ammonia (NH3). For a complete list of analytes, please see our Method List.
Our methods are compliant with USEPA, APHA (Standard Methods), and ISO reference methods.
-
The FIAlyzer-FLEX has a modular design, whereby the instruments can be combined into a 1-4 channel system with a combination of methods. This allows laboratories that need to analyze one set of samples for several analytes to do so in one run; conversely, a lab that is focused on a single parameter or prefers a dedicated system for each parameter can select a single-channel option.
The system is controlled by FIAsoft, our state-of-the-art control software, which is written by our in-house software team and receives regular updates. FIAsoft allows for easy sample import, QC monitoring, data export, LIMS integration, multilingual capability, and is compatible with Windows 10/11.
FIAlyzer-FLEX or FIAlyzer-1000
FIAlab offers two flow injection analyzers, the FLEX and the 1000. Each is well-suited for certain applications. The FIAlyzer-FLEX is ideal in the following situations:
A single channel is going to be frequently changed between several different methods
In-line methods are going to be run – these are well-suited for the FLEX, which provides the additional space for tubing and pump capacity to accommodate the additional reagent lines
The FIAlyzer-FLEX is aptly named – its flexibility allows method switchover to happen quickly and easily. FIAlab has the unique “universal manifold” concept, a design in which most of the setup between methods is identical. Additionally, FIAlab is the only flow analyzer manufacturer that uses a spectrometer instead of a photodiode, which means wavelength selection is all done through the software and there is no need for a wavelength-selection filter. Between these two aspects, switching the FIAlyzer-FLEX from one assay to another is a quick and simple matter.
If you would like to learn about another option that FIAlab has available, we recommend you also check out our FIAlyzer-1000.
-
The complete FIAlyzer-FLEX system includes an autosampler, control software, and standalone high-precision pump, and each channel includes an injection valve, light source, and full-array spectrometer. A built-in heater can be added when required. Additional options include an autodilutor, in-line digestor, manual distillation unit, or block digestor.
The flexible design, along with the additional capacity, make it an excellent choice for laboratories that require frequent method changeover or complex method ; some advantages in using a FLEX include:
Full automation of flow injection analysis, including automatic pre-dilution and post-dilution and re-running of over-range samples
Automated in-line digestion or distillation
Quick and easy method changeover
Small footprint – each channel measures less than 1 square foot (30 square centimeters)
Software is written in-house by FIAlab and receives regular feature updates
Fast calibration - under 5 min
Low reagent consumption
-
Analyzer
Type: Flow Injection Analyzer, single channel, expandable to multiple channels
Enclosure material: Aluminum (gray powder-coated / anodized)
Peristaltic Pump
Type: 16-channel peristaltic, individual pressure plates
Materials: Aluminum, Acetal, stainless steel
Tubing type: 2-stop PVC Peristaltic Pump Tubing
Valve
Type: 6-port; Two Position Injection Valve
Wetted materials: PPS, Valcon E2 (proprietary reinforced PTFE composite)
Port type: Flat-bottom ¼-28
Dimensions
Height: 13 in (33 cm)
Width: 6 in (15 cm)
Depth: 9.8 in (25 cm)
Weight: 26 lb (4 kg)
Communication
Input: USB
Control options: FIAsoft software
Power requirements
Voltage: 24 Vdc
Current: Max. 2.5 A
-
-
![]()
FIAlyzer-FLEX Standard Manifold
-
![FIAlyzer-FLEX Set-up]()

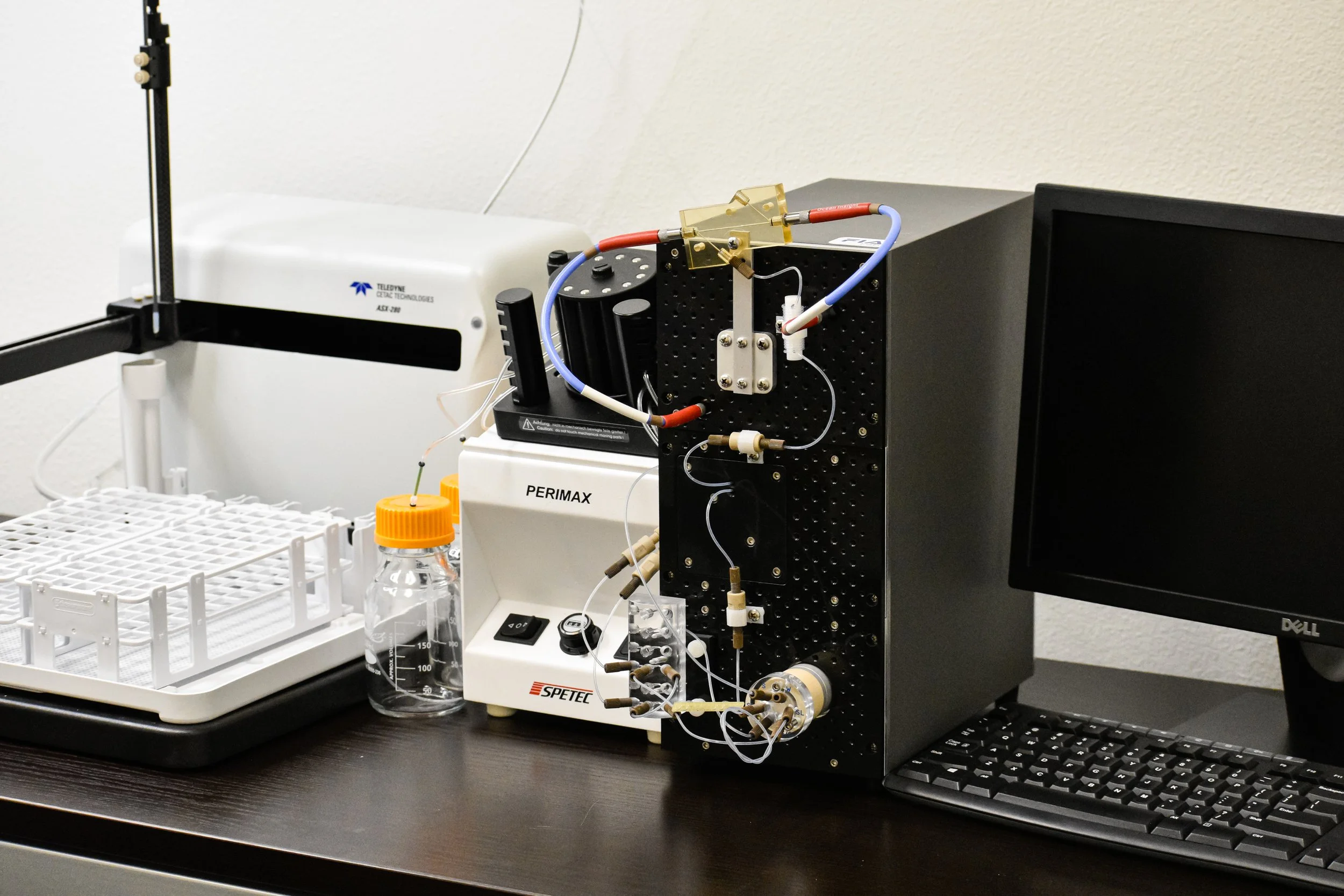

FIAlyzer-FLEX Set-up
-
![]()

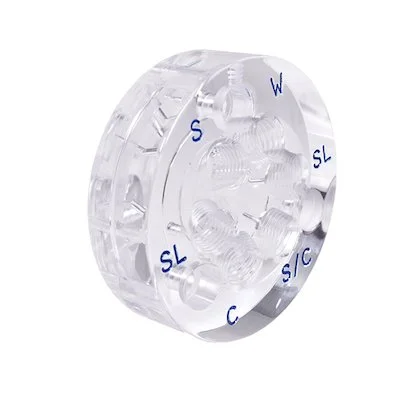

Lab-on-Valve (LOV)
-
![]()

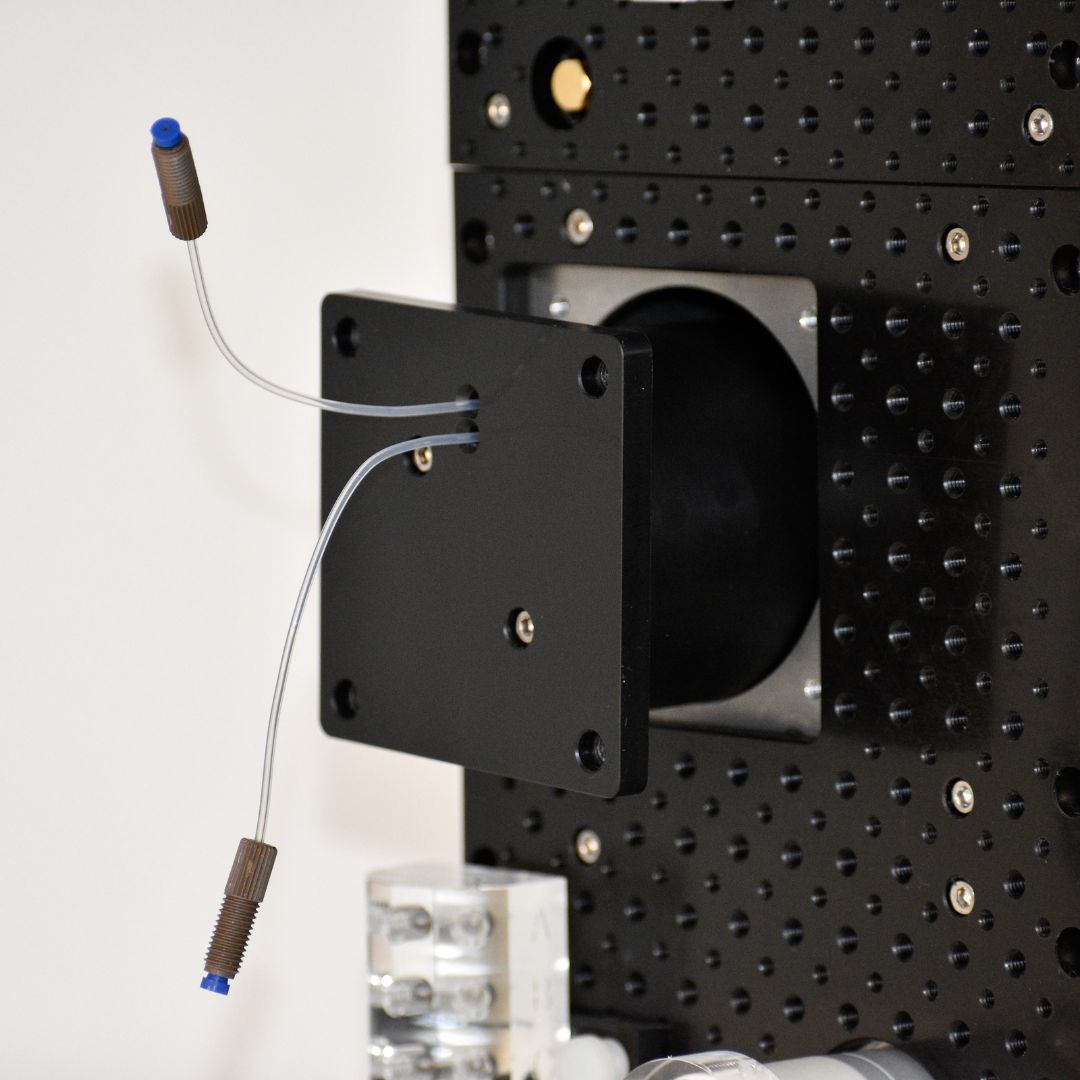

Internal Heater
-
![]()

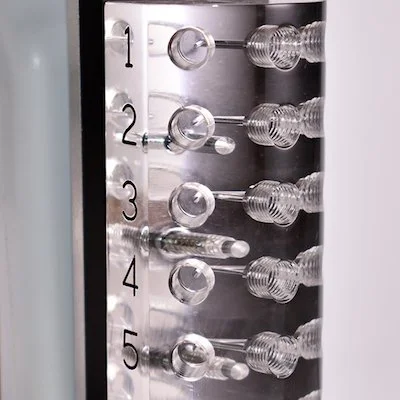

Reagent Manifold
-
![]()
In-House Manufactured Flow Cells
-
![Black polypropylene plate with holes]()
Assay Plate
-
![2-channel FIAlyzer-FLEX flow injection analyzer system for detecting Nitrate and Ammonia.]()

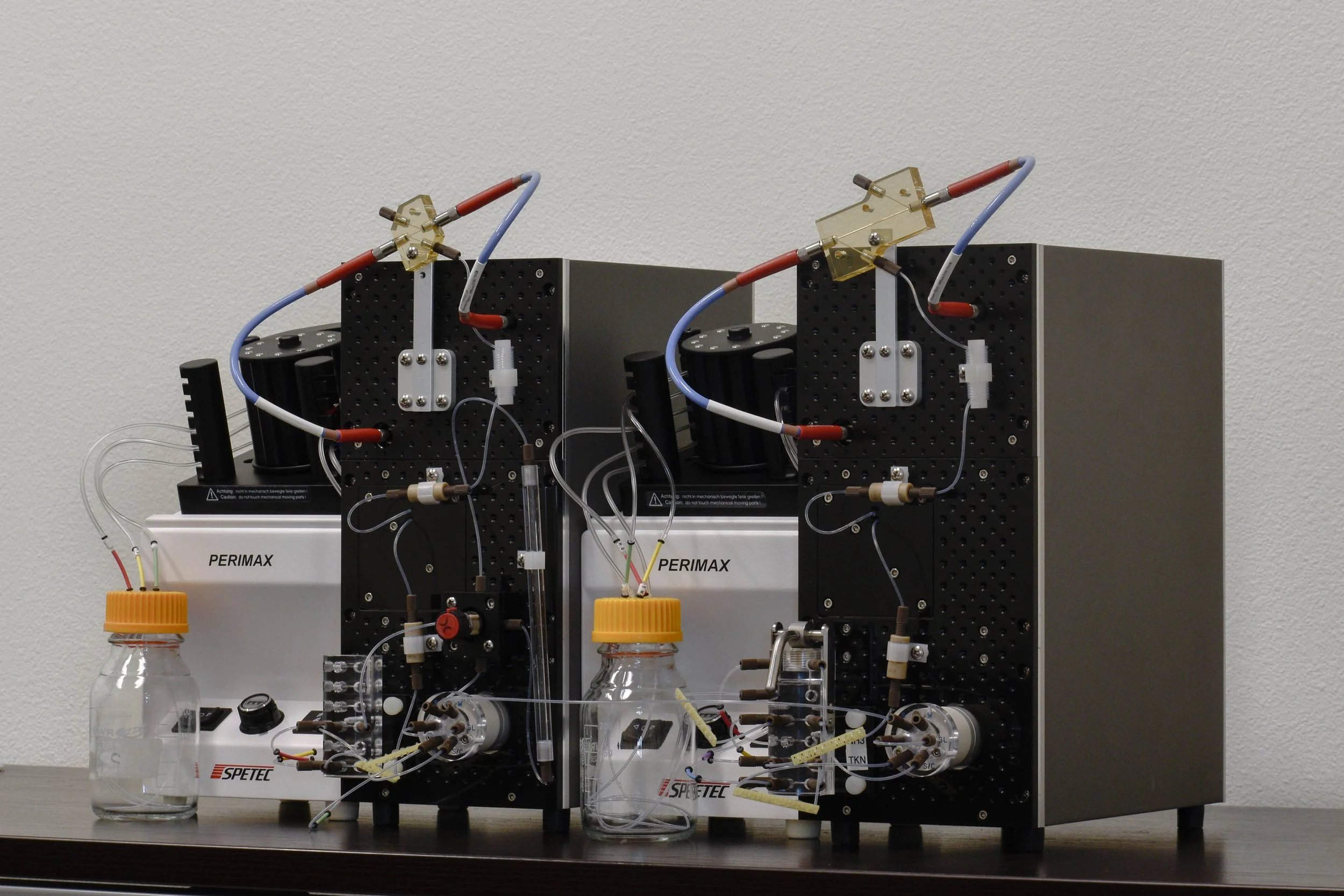

2-channel FIAlyzer-FLEX for Nitrate and Ammonia
Product Highlights
SFA Compatible
Segmented Flow Analysis (SFA) has long been at odds with Flow Injection Analysis (FIA). There is still a debate about which is better. However, most would agree that some methods are more suited for SFA, and others are more suited for FIA. For years, labs have had to choose between an SFA or FIA system. No longer. This instrument can perform both forms of analysis.
Flexibility
The sheer number of required methods for environmental analysis calls for adaptable instrumentation. It calls for instruments that can not only hit low detection limits but that can switch between assays, stack together, and serve you without issues. The FIAlyzer-FLEX is that instrument.
Easily Switch Between Methods
The FIAlyzer-FLEX uses assay “plates”, which allow the instrument to be quickly switched from one assay to another. These plates have pre-installed fluidic configurations for any assay. Simply snap these plates on and off to change between different methods.
Bench Space
In many labs, bench space is limited. At just six inches wide, the FIAlyzer-FLEX is designed vertically to minimize its footprint while still allowing easy access to all the critical components.
Methods
-
Gas diffusion and salicylate methods. EPA 350.1, EPA FIAlab100, SM 4500-NH3 H. Options for TKN and in-line digests. EPA 351.2 and SM 4600-Norg D; SM 4500-N B.
-
Molybdenum blue method. EPA 365.1 and SM 4500-P F, G, and H. Options for persulfate, TKP, and in-line digests. EPA 365.1 and SM 4500-P H; EPA 365.4; SM 4500-P I.
-
4-aminoantipyrine method for post-distillation and in-line distillation samples. EPA 420.1 and EPA 420.4.
-
Griess method with Cadmium reduction. EPA 353.2 and SM 4500-NO3 F. Options for persulfate digests and in-line digests. SM 4500-N B.
-
Typical Setup
Analyzer
Choose the analyzer that suits your application best. Is it single channel, multi-channel or a combination?
Computer
We supply computers at cost. We will install all relevant software and hardware. Or, use your own. Up to you!
Autosampler
We can supply an autosampler at retail value, or you can use one you already own. FIAsoft is compatible with all standard autosamplers.
Service Contract
Purchase a Preventative Maintenance Plan with us and receive unlimited consultation, extended warranty, and annual maintenance visits.
Software
Software is just as important as hardware. In order to provide complete analytical solutions, we understand that we have to deliver quality hardware and polished software. Our instruments operate on the newest, most intuitive FIA software ever. This program will change the way you use flow injection.
Request a Quote
If you would like more information or a quote of our products, please email: sales@flowinjection.com
Or, call us at 800-963-1101. One of our expert sales staff will be sure to help you.
